CM-PT10

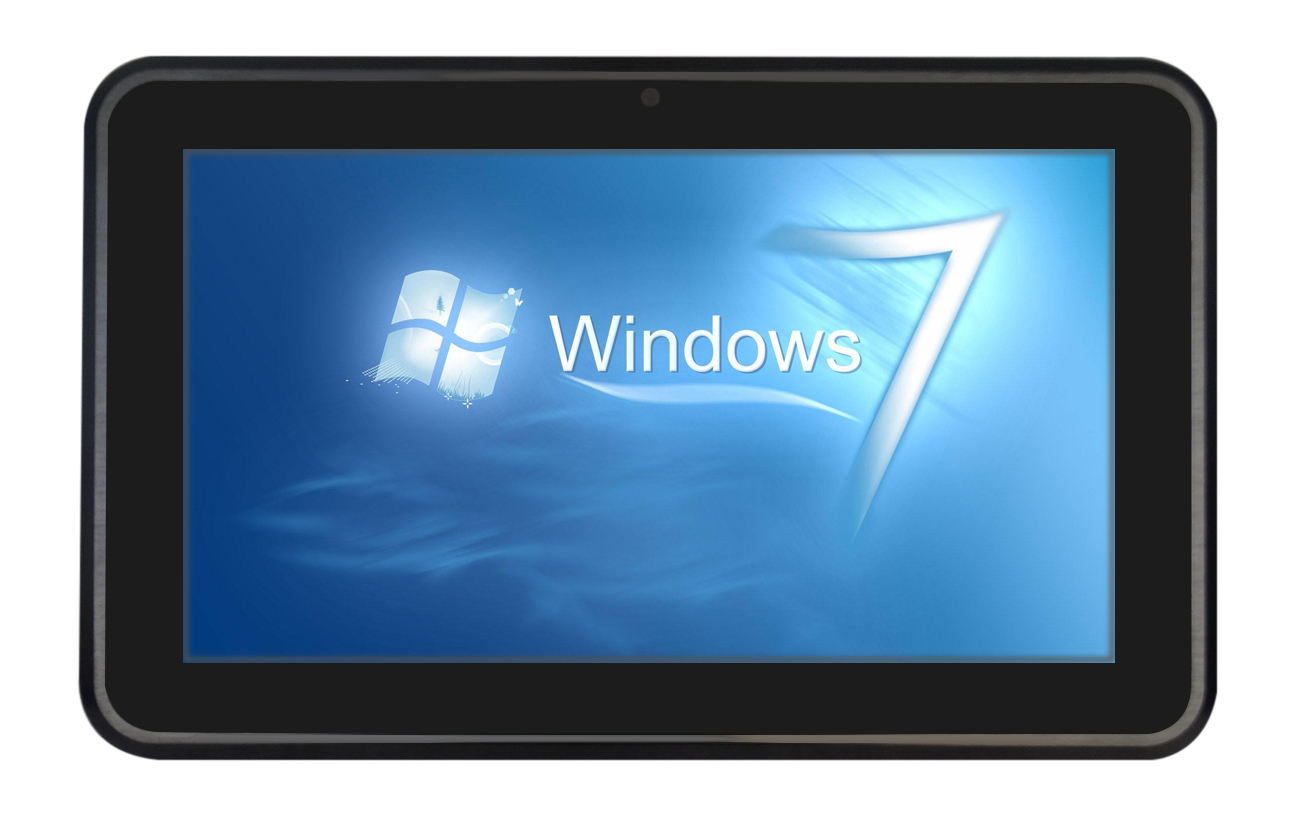

10.1" Ultra-Thin Widescreen Capacitive Touch Industrial Panel PC with onboard soldered CPU, 2LAN 1COM 3USB
Product Details
Features:
Ultra low power consumption, ultra-thin design Brushed aluminum alloy panel
Panel IP65 waterproof rating
soldered onboard 3805U/J1900 CPU
Standard 2LAN 1COM 3USB
A variety of installation methods can be selected
Capacitive touch screen, OEM resistive screen available
| Specifications | optional configurations | |||||||||
| Front Panel | Aluminum panel, brushed and oxidized black | Other colours can be customized | ||||||||

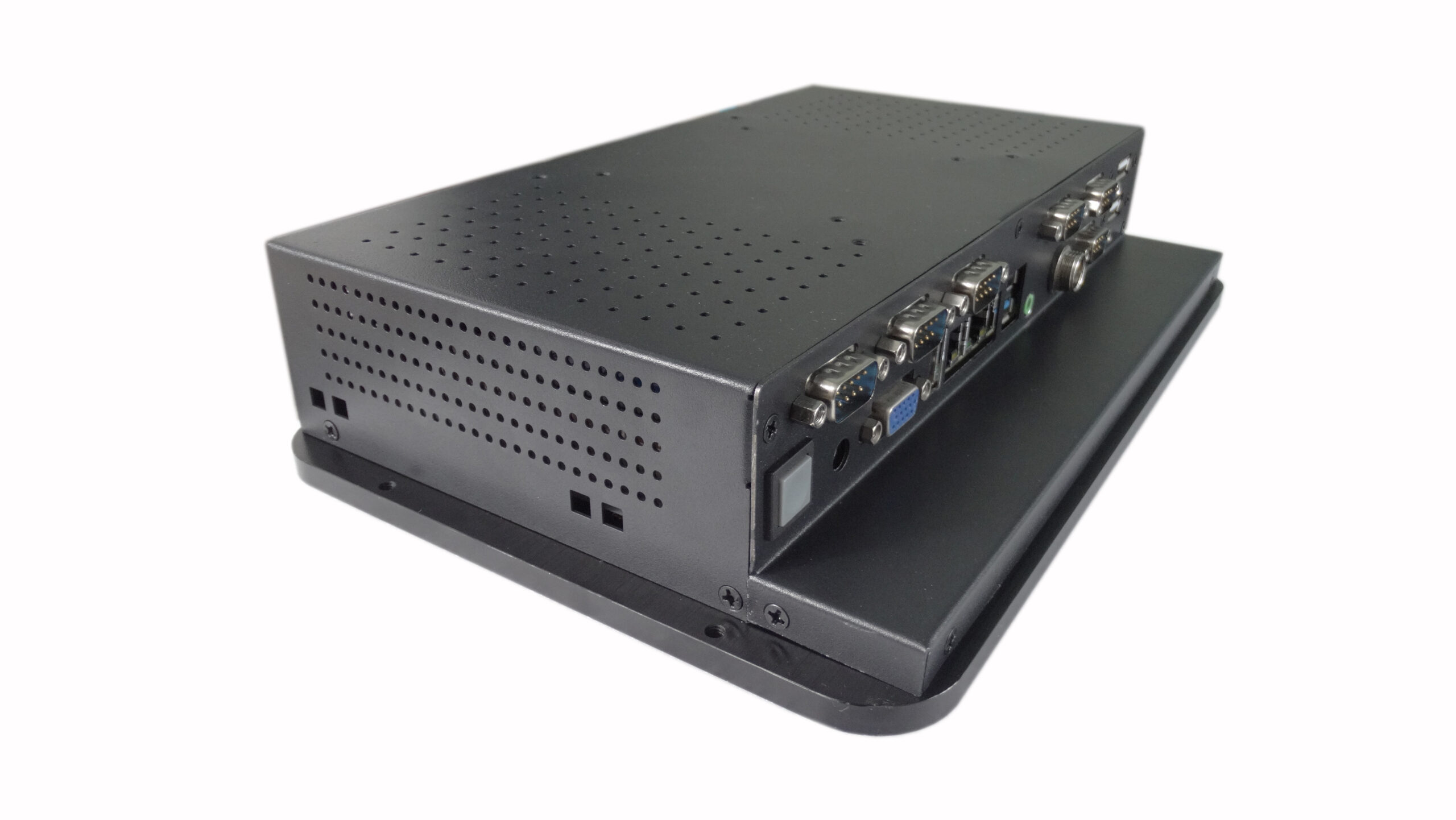

| Back chassis | 1.2mm steel plate, grey,Sandblasted natural fins | Other colours can be customized | ||||||||
| LCD Screen | 10.1″ TFT, LED backlight; Resolution 1280*800; Dot matrix: 0.1695*0.1695; Max. colour: 16.7M; Brightness: 350cd/㎡; Contrast ratio: 1300:1; Response time: 16ms; MTBF: 30,000h Viewing angle: (+85° ~ -85°) (+85° ~ -85°). | |||||||||
| Touch Screen | Capcitive screen | Customizable resistive screen | ||||||||
| Adaptive Motherboard | 3.5″ 3805U dedicated motherboard in Yanyue | Optional J1900 dedicated motherboard in Yanyue | ||||||||
| CPU/GPU | 3805U | Customizable 2nd/3rd Generation i3/i5/i7 notebook CPU | ||||||||
| Memory | 4G DDR3 | Optional 2G/8G/16G,Max up to 32G notebook memory | ||||||||
| Hard Disk | 128G MSATA | Optional 32G/64G/256G/512G mSATA | ||||||||

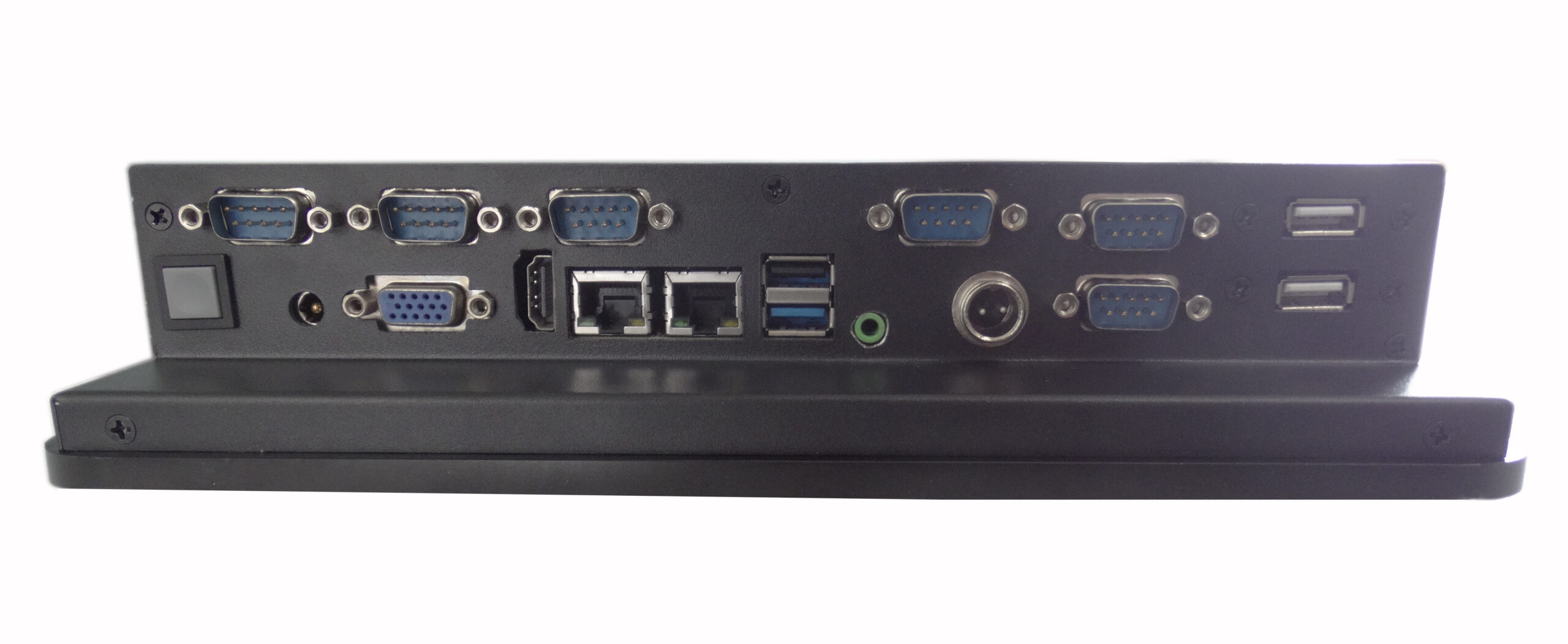

| Interfaces | DC12V；USB； 2RJ45(Gigabite）；VGA；HDMI; Audio out； MIC in； 1COM | customizable interface; customizable Phoenix terminal, customizable wide voltage input Customizable wireless antenna holes |
||||||||

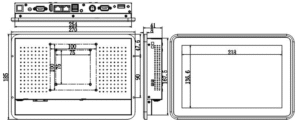

| Size | 270(length)* 185(width)* 41(thickness)mm | Net/Gross Weight | 2/2.5KG | |||||||
| Power Supply | 12V@5A Adapter | |||||||||

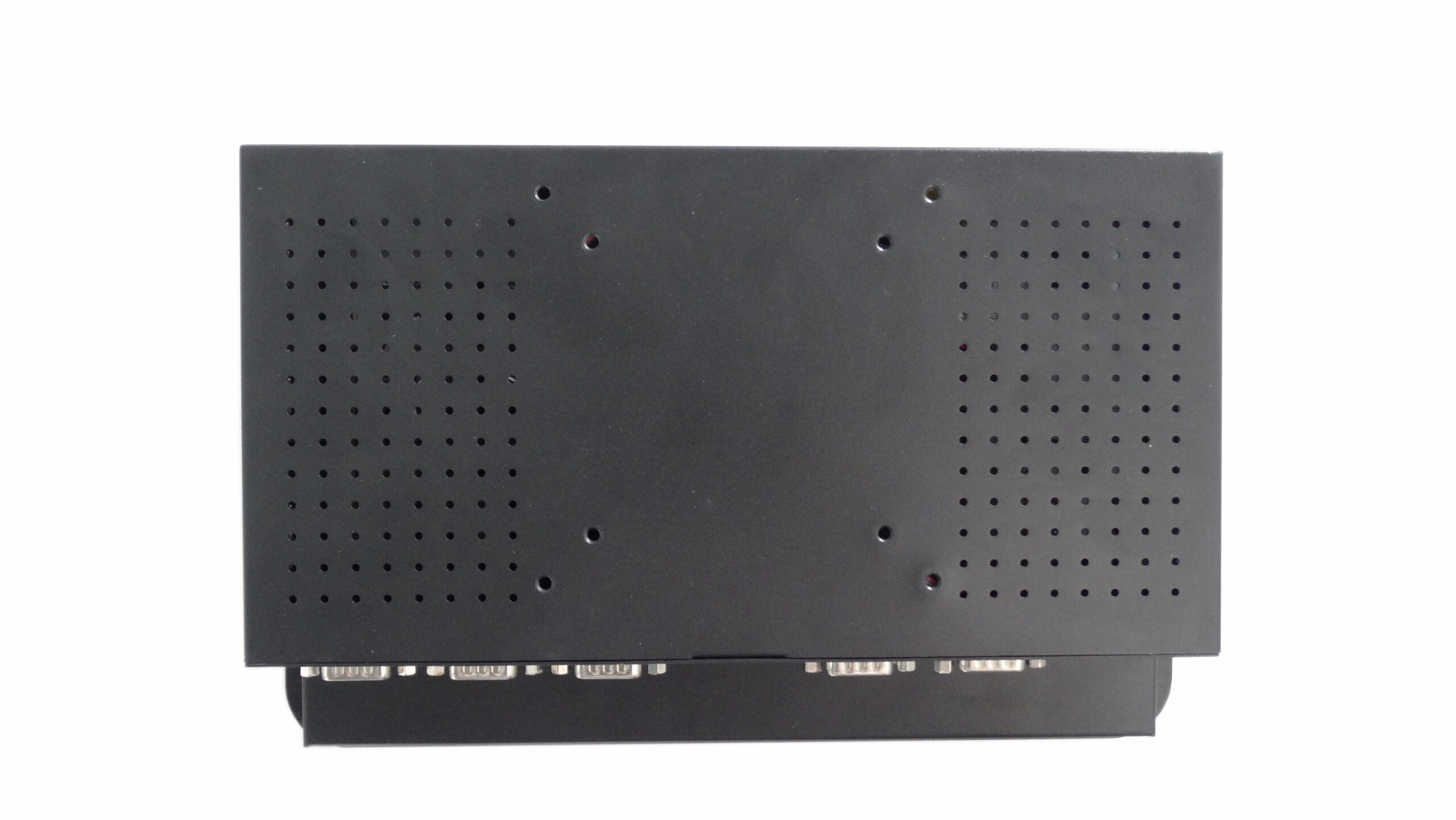

| Installation mode | Recessed screw mount;Recessed hook mounting; VISA wall mount | |||||||||
| Work and Environment | ||||||||||
| Working temperature | （-20～60）℃ | Storage temperature | -40～75℃ | Environmental humidity | 0~90% air humidity, no condensation | |||||
| IP rating | Panel IP65 | Vibration | 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration | |||||||
| EMC | GB9254-2008 class A | Shock | 10g acceleration, 11ms duration | |||||||
